Name: Single Strand Hook Up Wire for Bread Board
SKU: 4167
Availability: InStock

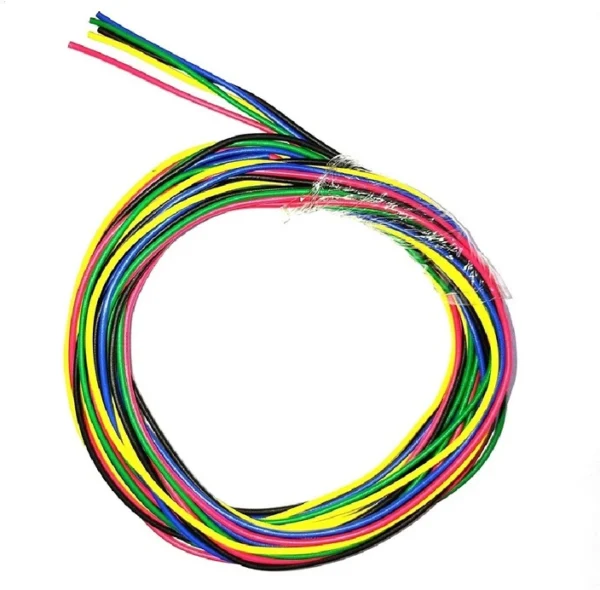

Single Strand Cable – Hook-Up Wire for DIY Electronics

The Single Strand Cable is a high-quality, insulated copper wire ideal for use in electronics prototyping, circuit board connections, and DIY projects. Made from pure copper conductor, it offers excellent conductivity and mechanical strength, making it suitable for breadboarding, Arduino projects, and internal wiring of enclosures or devices.

This type of wire is rigid and holds shape, making it easy to route and organize neatly. It’s commonly used in PCB jumpers, power supply connections, and signal routing in embedded and hobby electronics.

Product Specifications

Feature	Specification
Conductor Type	Single Core (Solid)
Conductor Material	Pure Copper
Insulation Material	PVC
Voltage Rating	Up to 300V
Temperature Range	-10°C to +80°C
Typical Wire Gauge	22 AWG (available in 18 AWG to 26 AWG variants)
Outer Diameter	Approx. 1.5–2 mm (depends on gauge)
Color Options	Red, Black, Yellow, Green, Blue, White, etc.
Length	Available in 1m, 5m, 10m rolls or as per requirement
Flexibility	Low (holds shape well, ideal for fixed wiring)
Application	Internal wiring, breadboards, prototyping, etc.

Key Features

Excellent Conductivity: Made with 100% copper core for minimal resistance.
Shape Retaining: Solid core holds bends, ideal for breadboards and clean routing.
Color-Coded: Multiple insulation colors available for easy identification.
Easy to Cut and Strip: Compatible with standard wire strippers and cutters.
Durable Insulation: PVC coating ensures protection from short circuits and wear.
