L298N Motor Driver Module – Dual H-Bridge 2A DC/Stepper Motor Controller
The L298N Motor Driver Module is a robust and versatile dual H-bridge motor driver that allows you to control the speed and direction of two DC motors or one stepper motor. Built around the L298N IC, it can handle up to 2A per channel and supports a motor voltage range of 5V to 35V, making it perfect for robotics, automation systems, and motor control projects.
The module features onboard 5V voltage regulator, enable jumpers, and screw terminals for easy wiring. It is compatible with microcontrollers like Arduino, ESP32, and Raspberry Pi, and is ideal for driving motors in smart cars, robotic arms, and other DIY projects.
Key Features
Based on L298N dual H-bridge driver IC
Controls 2 DC motors or 1 stepper motor
Independent speed and direction control
Built-in 5V regulator (can be enabled/disabled)
2A maximum current per channel

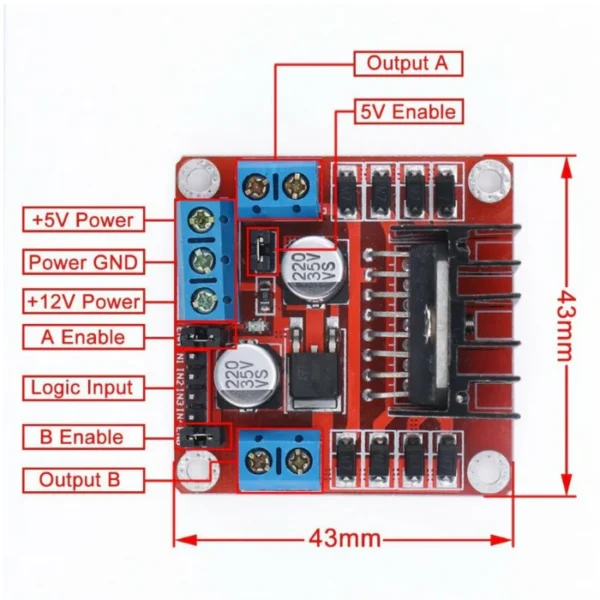

Screw terminals for motor and power connections
Compatible with Arduino, Raspberry Pi, and more
Product Specifications
Feature
Specification
IC Used
L298N
Motor Control
2 DC motors or 1 stepper motor
Operating Voltage
5V to 35V (motor supply)
Logic Voltage
5V (via onboard regulator or external)
Output Current
2A per channel (max)
Peak Current
3A (short duration with heatsink)
Power Output
5V (when jumper enabled and motor V ≥ 7V)
Control Inputs
IN1, IN2, IN3, IN4, ENA, ENB
Protection
Onboard flyback diodes for back EMF
Dimensions
~43mm x 43mm x 27mm
Compatible Platforms
Arduino, ESP32, STM32, Raspberry Pi, etc.
Applications
Smart robotic cars and rovers
Stepper motor control systems
Conveyor belt projects
DIY automation setups
Motorized door systems
Educational robotics kits
