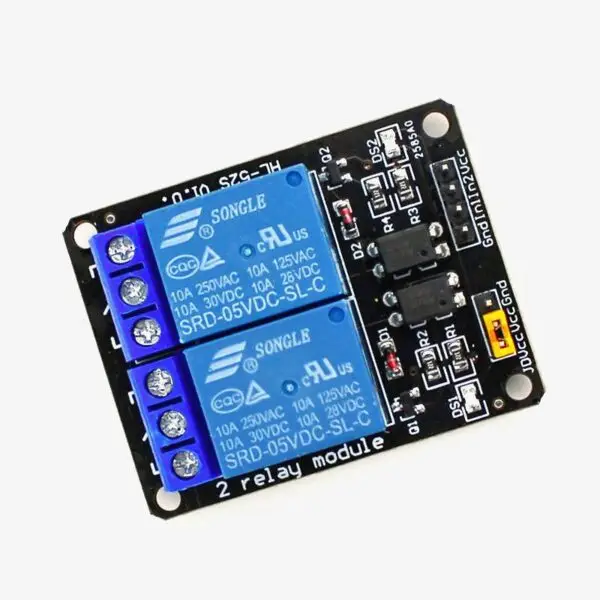

2 Channel 5V Relay Module with Optocoupler – High Current Relay Driver Module for Arduino, ESP32, Raspberry Pi
The 2 Channel 5V Relay Module with Optocoupler is a reliable and safe solution for controlling high voltage AC or DC loads using low voltage microcontrollers like Arduino, ESP32, or Raspberry Pi. Featuring opto-isolation (optocoupler protection), this module ensures complete electrical isolation between the control circuit and the relay, protecting sensitive devices from voltage spikes and noise.
Key Features:
Dual Channel Control: Independently control two AC or DC loads using microcontroller outputs.
Optocoupler Isolation: Ensures protection and electrical isolation between low-voltage control and high-voltage switching circuits.
High Current Relays: Each relay supports up to 10A at 250V AC or 10A at 30V DC.
Indicator LEDs: Onboard status LEDs show the relay state for each channel.
Active Low Trigger: Relay is triggered when input signal is LOW (can be changed with jumper setting).
Screw Terminals: Easy and secure connection for load wiring.
Product Specifications:
Feature
Specification
Operating Voltage
5V DC
Channels
2
Relay Type
Electromechanical, SPDT
Control Signal
Active LOW
Isolation Method
Optocoupler
Max. Switching Voltage
250V AC / 30V DC
Max. Switching Current
10A
Dimensions
Approx. 50mm x 40mm x 18mm
Mounting Holes
Yes
Indicator LEDs
Yes (per channel)
Applications:
Home Automation Projects
Industrial Control Systems
Smart Home Devices
Motor, Fan, Light Control
IoT-based Relay Switching Systems
